feat(ui-global-nav): add the GlobalNav API types, the collapsible rail, its items and the logo by balzss · Pull Request #2768 · instructure/instructure-ui

balzss · 2026-10-28T12:25:03Z

Summary

Bump @instructure/instructure-design-tokens from v2.3.0 to v2.4.0. GlobalNav needs the new MainNav.minimizedGap token, the spacing of the collapsed rail. Other token changes:
- mainNavItem.selectedBackgroundColor is renamed to activeBackgroundColor.
- New CollapseButton, SubNav and SubNavItem tokens, new Banner typography and SegmentedControl opacity tokens, and the Stepper spacing tokens moved to StepItem. No code uses these yet.
- Legacy themes: stroke.warning is orange instead of honey. It is the warning border color of Alert, Pill, ProgressCircle and View.
- Legacy themes: the GlobalNav box shadow changes from transparent to a real shadow, so the legacy rail has a shadow now.
Add the GlobalNav props and data types, exported from @instructure/ui-global-nav and @instructure/ui. The app passes the nav content as data (items, logo, account). Where needed, it can also pass its own JSX, HTML attributes or a custom element.
Add the rail with a collapse button. Sizes and colors come from the GlobalNav, MainNav and MainNavItem tokens. The button is an InstUI IconButton with a Tooltip, and it calls onCollapse with the new value.
Add the rail items: links or buttons with an icon, a label, an optional badge and a chevron for items with a sub navigation. In the collapsed rail, the label moves to a tooltip and to screen reader text.
Items accept elementProps (HTML attributes, for example data-*) and render (a custom element, for example a router link). GlobalNav applies its own props last, so the app can't override the aria attributes, the href check or the click handling.
Add the logo: an image, a name, or both, with an optional link. With wordmark, the image already shows the name, and name is its alternative text. The docs example uses a Canvas wordmark and mark. These images are only in the docs app, not in a package.
Not in this PR: new unit tests and regression screenshots (they come when the markup is final). Some props are typed but don't work yet: account, the SubNav panel, backLabel and closeSubNavLabel. They come in the next PRs. Known gap: the collapse button's focus ring has too little contrast on the legacy rail.

Test Plan

Open the preview at https://instructure.design/pr-preview/pr-2768/#GlobalNav. The page is hidden from the nav and the search. Keep the # in the link: without it, the production docs open, and they don't have GlobalNav.
Click the collapse button. The rail changes from 232px to 92px wide, and the label changes between "Collapse navigation" and "Expand navigation".
Switch the theme. Light and dark have 12px padding inside the rail, and the legacy themes have none.
Collapse the rail in each theme. The logo is 8px below the top, with 8px between the logo, the collapse button and the items.
Check the logo. Expanded, it shows the wordmark, and collapsed, the square mark, both 32px tall. Light shows the dark version, the other themes the white one.
Turn on RTL in the example. The rail and the chevrons are mirrored.
Click Courses. Screen readers announce it as expanded, also when the rail is collapsed. Inbox reads as "Inbox 9 unread messages".
The visual regression report shows changed global-nav screenshots. These changes are expected: the regression page now shows the rail with the collapse button. Diffs in the legacy rail shadow, or in the warning borders of Alert, Pill, ProgressCircle or View in a legacy theme, come from the token bump.

Refs INSTUI-5215

🤖 Generated with Claude Code

github-actions · 2026-10-28T12:30:05Z

PR Preview Action v1.8.2
🚀 View preview at https://instructure.design/pr-preview/pr-2768/
Built to branch `gh-pages` at 2026-10-30 17:04 UTC. Preview will be ready when the GitHub Pages deployment is complete.

github-actions · 2026-10-28T12:30:49Z

Visual regression report

Cypress suite: ✅ Passing

Visual diff: ⚠️ Changes detected.

Status	Count
Unchanged	101
Changed	7
New	0
Removed	0

Accessibility (axe): ✅ No violations.

📊 View full report — click a screenshot's ⚠ badge to see each violation boxed on the image, with the offending element named and contrast failures shown as color swatches.

Diff images (7)

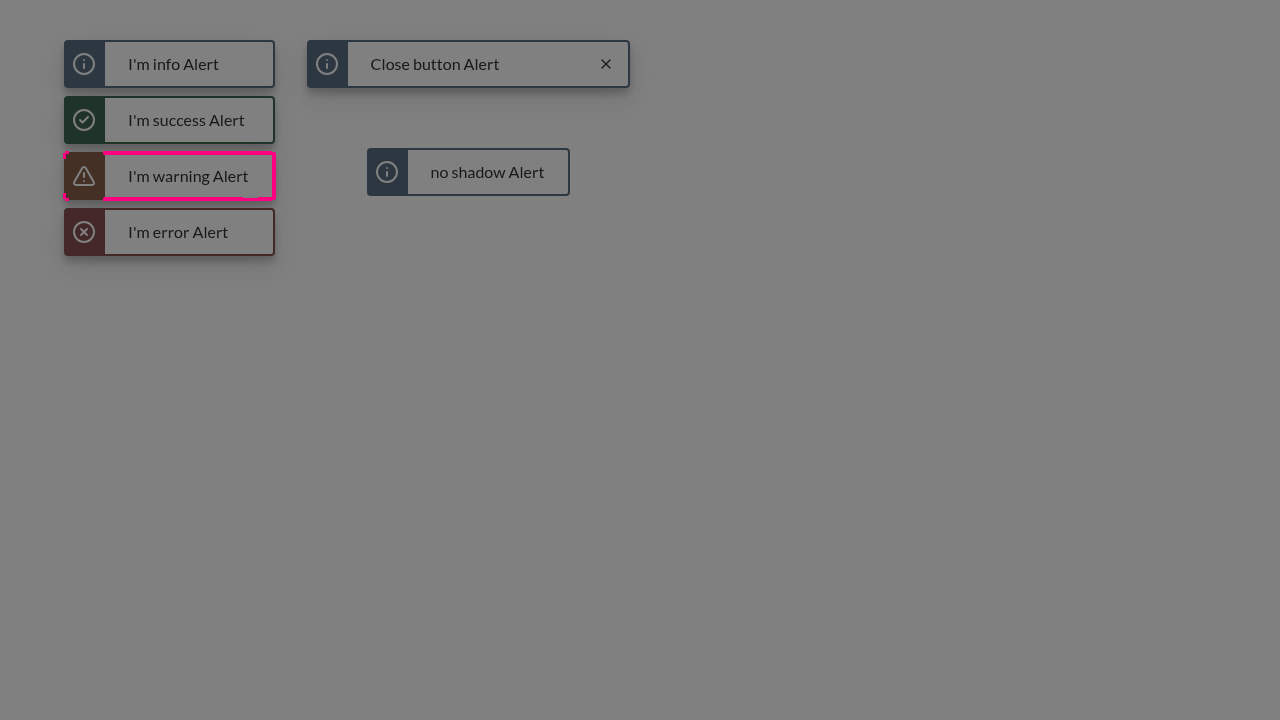

alert-canvas.png — 753 pixels differ

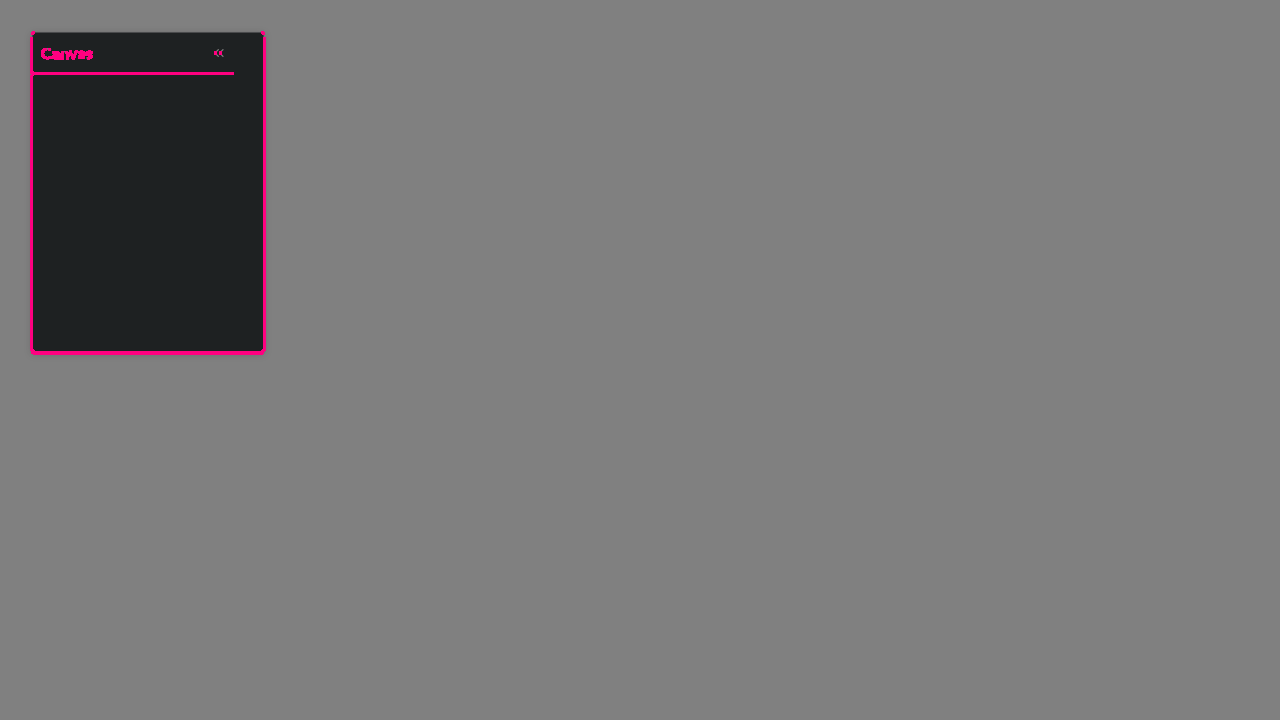

global-nav-canvas.png — 1415 pixels differ

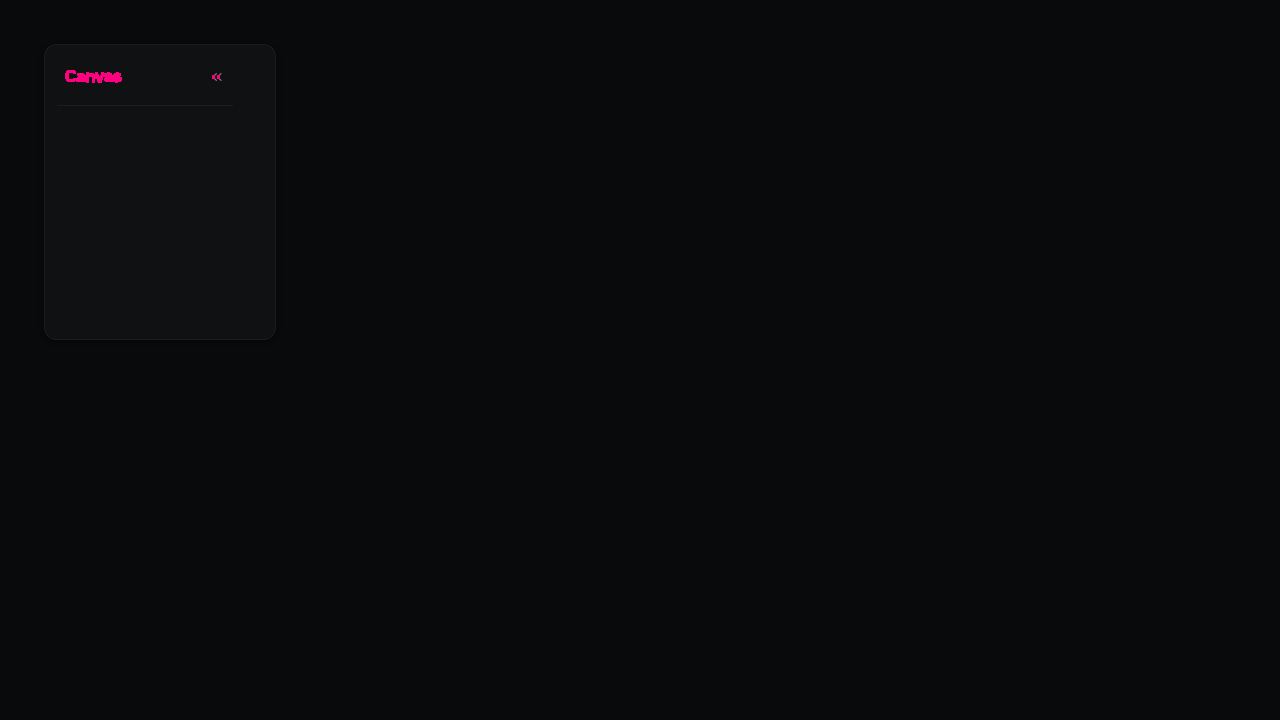

global-nav-dark.png — 179 pixels differ

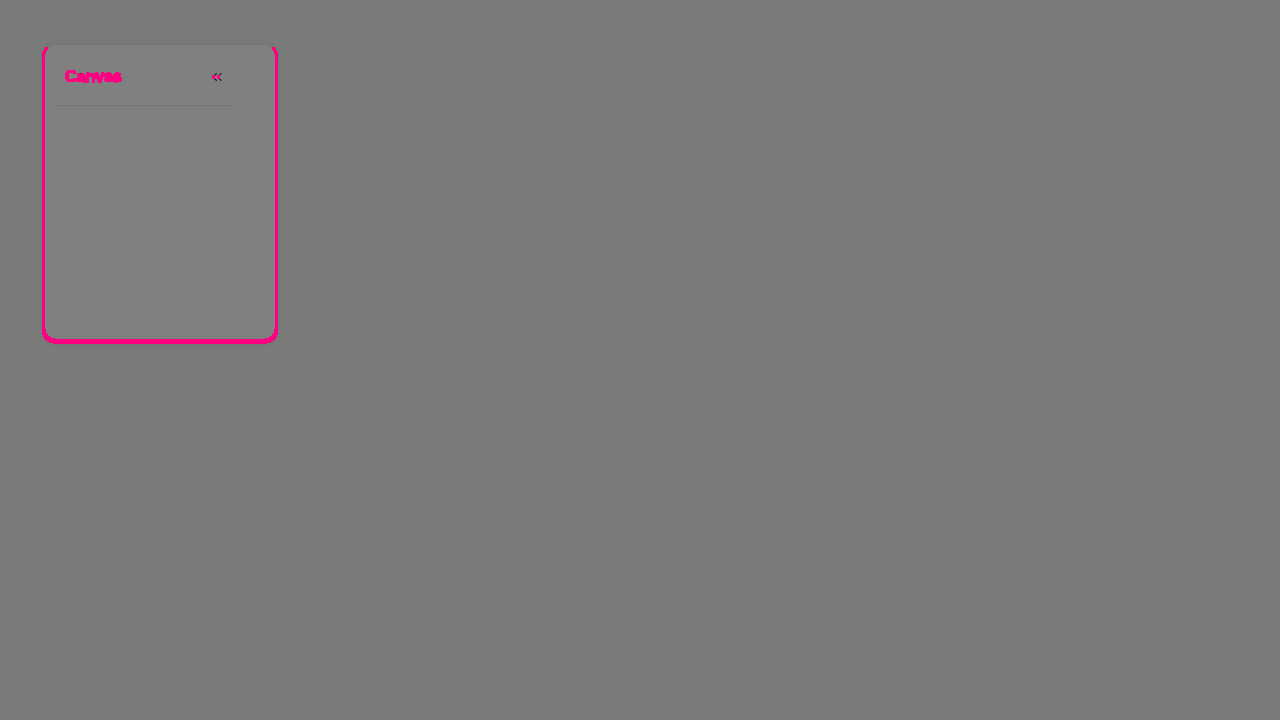

global-nav-light.png — 1449 pixels differ

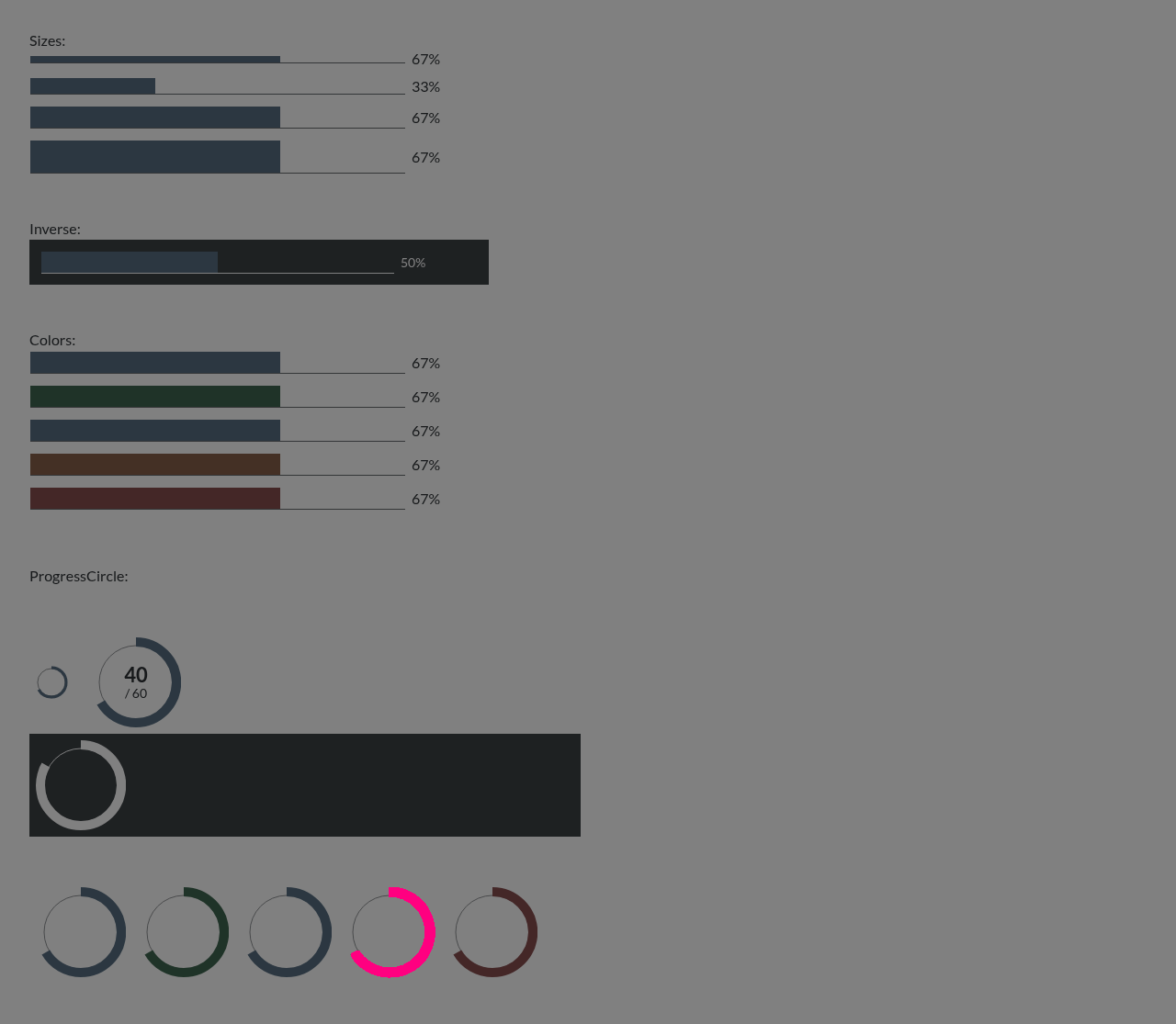

progressbar-canvas.png — 1661 pixels differ

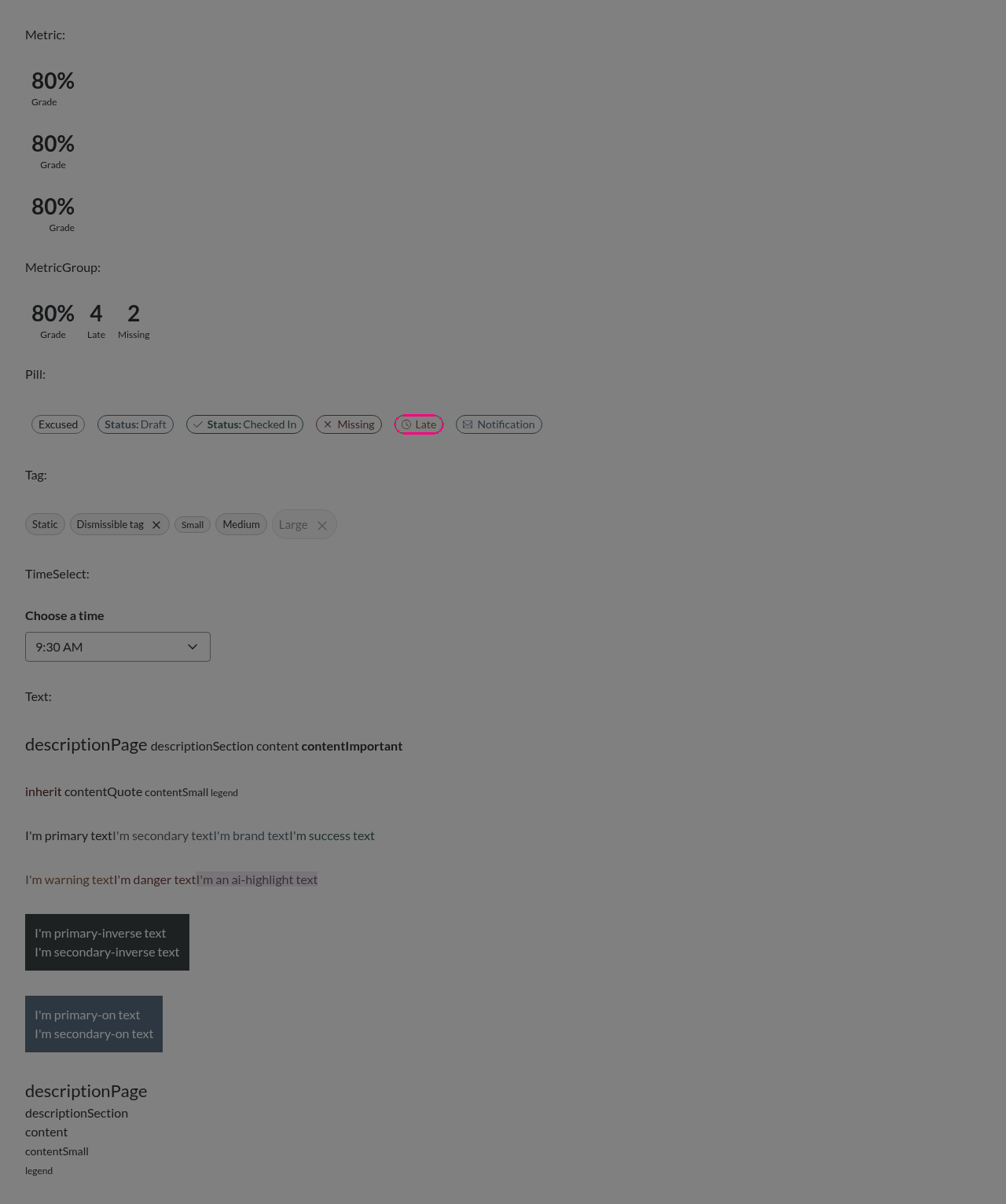

small-components-canvas.png — 85 pixels differ

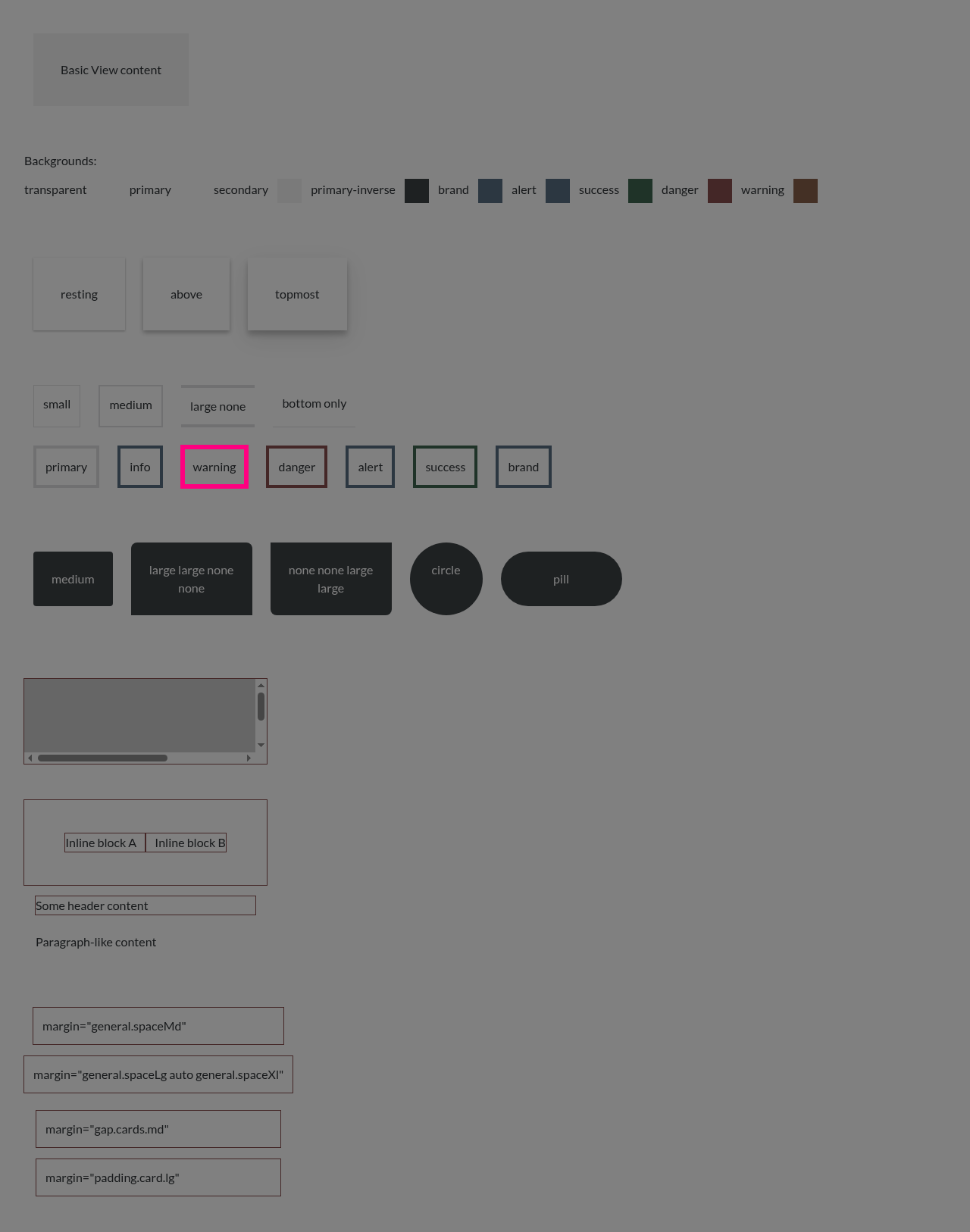

view-canvas.png — 1088 pixels differ

_{Baselines come from the visual-baselines branch. They refresh on every merge to master. The Cypress suite line covers the a11y and console-error assertions — a ❌ there means the suite found real issues even if the visual diff is clean.}

matyasf · 2026-10-29T10:53:38Z

+  /**
+   * The institution logo at the top of the rail.
+   */
+  logo?: GlobalNavLogo


This should not be optional IMO

I was wondering about this, I will ask design if there can ever be exceptions

made it required. if design says there can be a nav without a logo we can make it optional later without a breaking change

joyenjoyer · 2026-10-30T12:13:59Z

 const Components = getComponentsForVersion()

+// an SVG shown with <img> can't inherit the text color, so the examples get one URL per color
+const svgUrl = (svg: string, color: string) =>


Question about the canvas-wordmark icon here: may non-instui devs use it later or is it added just for the docs app example? if yes, it would be worth to add it as an official icon to our ui-icons package and use it here with setting color through its API

i've asked design about this, they didn't have a clear answer yet but most likely we won't be providing this to end users and this is just here for docs example purposes

joyenjoyer · 2026-10-30T12:27:53Z

+  /**
+   * The heading of the panel.
+   */
+  title: Renderable


Isn't a string enough here?

probably yes or if not, we can expand it later, i'll update this

changed it to string

joyenjoyer · 2026-10-30T12:48:33Z

+ * @return The final style object, which will be used in the component
+ */
+const generateStyle = (
+  componentTheme: ReturnType<NewComponentTypes['MainNavItem']>


I would create a dedicated theme for this component instead of using MainNavItem's theme. Moreover, since this is a tiny unit of the larger component, I would remove it and just add the code to MainNavItem's render.

this is something that i'll consider but I would suggest to leave it like this for now and once we decide what to do, we can update this in a future pr

joyenjoyer · 2026-10-30T12:49:43Z

+    },
+    mark: {
+      label: 'institutionLogo__mark',
+      // MainNavInstitutionLogo has no size tokens


Maybe design team should add tokens here?
tagging @adamlobler

i'll let him know this needs to be added but until that is done i think this can be left like this and replaced in a future pr

joyenjoyer · 2026-10-30T13:52:18Z

@balzss one more thing: when I collapse an opened GlobalNav, it is flickering; it closes, reopens and closes quite quickly before it settles

GlobalNav needs the new MainNav.minimizedGap token, the spacing of the collapsed main column. Token changes: - MainNav: new minimizedGap. MainNavItem: selectedBackgroundColor is renamed to activeBackgroundColor. New CollapseButton set and new SubNav and SubNavItem colors. Nothing uses these yet. - Legacy themes: the GlobalNav box shadow and the MainNavAccountItem hover color changed. - Legacy themes: stroke.warning is orange instead of honey. It is the warning border color of Alert, Pill, ProgressCircle and View. - New Banner typography and SegmentedControl opacity tokens, and the Stepper spacing tokens moved to StepItem. No component uses these sets yet. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

The app describes the nav as data (items, logo, account) instead of nested sub-components, so InstUI renders all the markup and keeps roles, focus and keyboard handling in one place. GlobalNav hasn't been released yet, so dropping children isn't a breaking change. Co-Authored-By: Claude <noreply@anthropic.com>

The collapse button is an InstUI IconButton with colors from the MainNavItem tokens. Its focus ring keeps the default info color for now, which has too little contrast on the legacy rail. Co-Authored-By: Claude <noreply@anthropic.com>

Items with a sub navigation are buttons with aria-expanded. In the collapsed rail the tooltip wraps a span around the item, because Tooltip overwrites the aria-expanded of its trigger. Co-Authored-By: Claude <noreply@anthropic.com>

GlobalNav applies its own props after the app's, so elementProps can't override the aria attributes, the href check or the click handling. Co-Authored-By: Claude <noreply@anthropic.com>

The divider under the logo row uses the GlobalNav border color, and the main column has a hardcoded width, until the design tokens add a MainNav divider color and width. Co-Authored-By: Claude <noreply@anthropic.com>
